Nub
/ About Nub
Design: O/M + Bartenbach GmbH
Ceiling-recessed luminaire aluminium die-cast body with electrostatic 100% polyester paint finish.
IP65 protection level.
Focal-lens with complex surfaces to provide a focal point through an 8mm aperture for low glare illumination.
Fitting accessory and power supply for Nub ordered separately.
Version with plasterboard supplied with plasterboard.
Optical accessories available separately and positioned at the factory.
Driver to be ordered separately.
Light Effect
Medium
Flood
Finishes

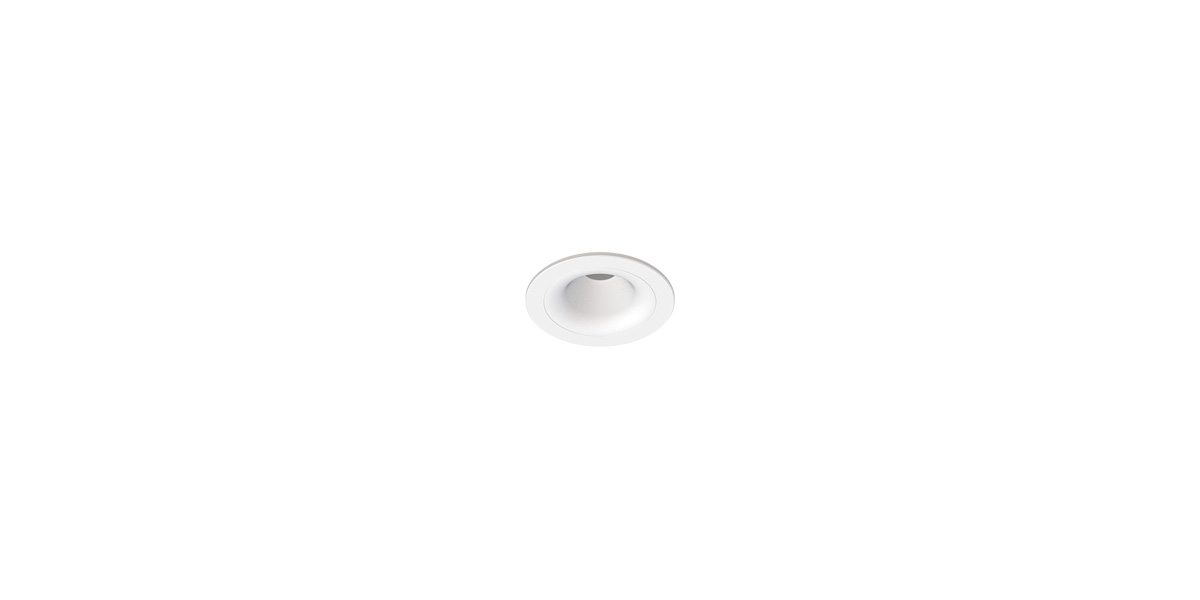

.01 White

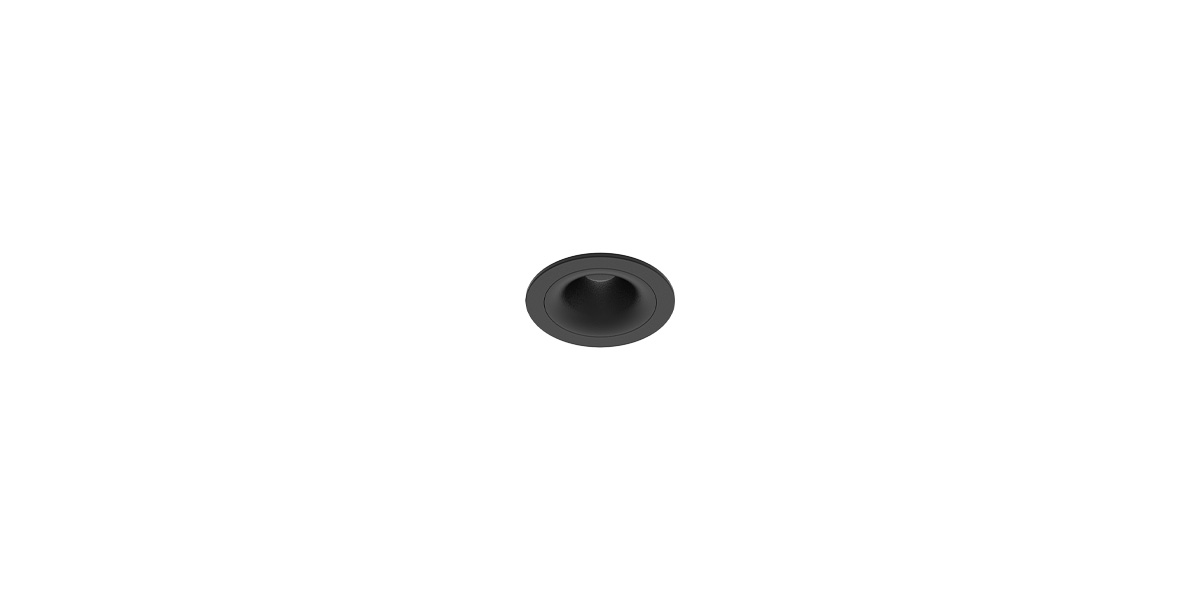

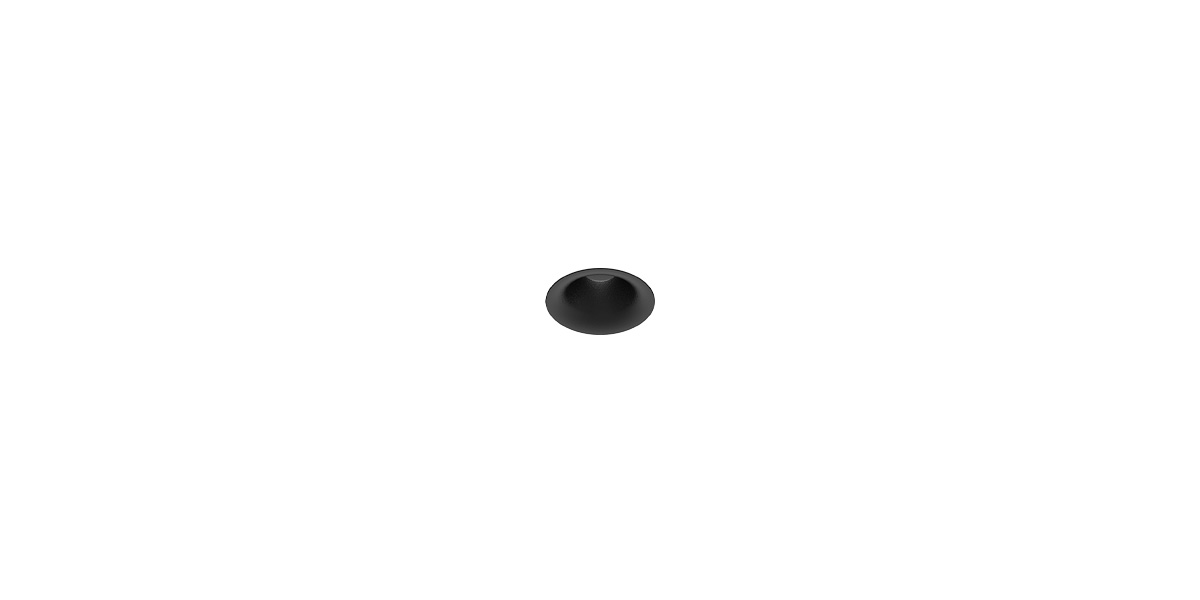

.02 Black/ Filter Options
/ Nub
No results were found
Color Temperature
Luminaire Dimension
Beam Angle
Light Source Power
UGR
Light Source Flux
Luminaire Flux
Product
code
code
| Color Temperature | Luminaire Dimension | Beam Angle | Light Source Power | UGR | Light Source Flux | Luminaire Flux | Product code |
|---|---|---|---|---|---|---|---|
| 2700K | ø28mm | Medium 33° | 5,6W | <10 | 460lm | 280lm | 60000 |
| 2700K | ø28mm | Flood 55° | 5,6W | <22 | 460lm | 310lm | 60001 |
| 3000K | ø28mm | Medium 33° | 5,6W | <10 | 460lm | 280lm | 60002 |
| 3000K | ø28mm | Flood 55° | 5,6W | <22 | 460lm | 310lm | 60003 |
| 4000K | ø28mm | Medium 33° | 5,6W | <10 | 490lm | 300lm | 60004 |
| 4000K | ø28mm | Flood 55° | 5,6W | <22 | 490lm | 330lm | 60005 |
| Product code |
|
|---|---|
| 2700K / ø28mm / Medium 33° / 5,6W / <10 / 280lm | 60000 |
| 2700K / ø28mm / Flood 55° / 5,6W / <22 / 310lm | 60001 |
| 3000K / ø28mm / Medium 33° / 5,6W / <10 / 280lm | 60002 |
| 3000K / ø28mm / Flood 55° / 5,6W / <22 / 310lm | 60003 |
| 4000K / ø28mm / Medium 33° / 5,6W / <10 / 300lm | 60004 |
| 4000K / ø28mm / Flood 55° / 5,6W / <22 / 330lm | 60005 |
