O975
Surface/Pendant
/ About O975 Surface/Pendant
Design: Eduardo Souto de Moura

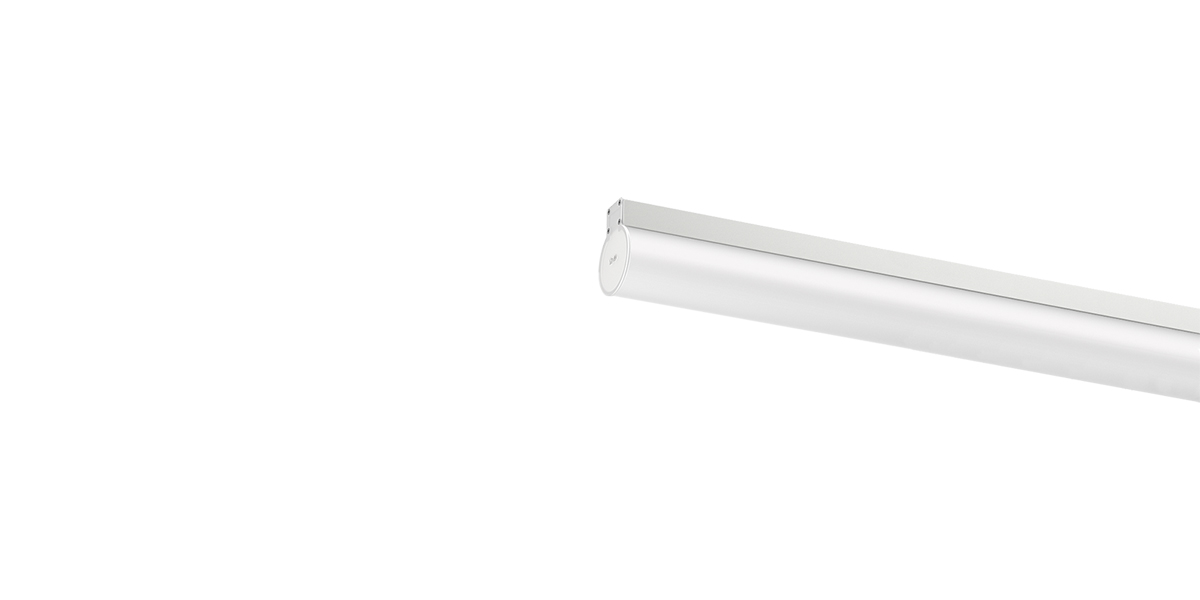

Surface or Pendant luminaire with housing made of anodised aluminium profile with matt or textured-paint finish and frosted polycarbonate diffuser with user friendly clipping system.
5mm frosted polycarbonate end caps.
Fitting accessories ordered separately.
Light Effect
Diffuse
Finishes
.01 White
.02 Black
.10 Anodised aluminium/ Filter Options
/ O975 Surface/Pendant
No results were found
Color Temperature
Luminaire Dimension
Beam Angle
Light Source Power
UGR
Light Source Flux
Luminaire Flux
On/Off Code
DALI Code
| Color Temperature | Luminaire Dimension | Beam Angle | Light Source Power | UGR | Light Source Flux | Luminaire Flux | On/Off Code | DALI Code |
|---|---|---|---|---|---|---|---|---|
| 3000K | 310mm | Diffuse | 13W | <22 | 1450lm | 1000lm | 62702 | |
| 3000K | 595mm | Diffuse | 26W | <22 | 2900lm | 2000lm | 62703 | 62708 |
| 3000K | 1160mm | Diffuse | 51W | <22 | 5850lm | 4100lm | 62704 | 62709 |
| 3000K | 1440mm | Diffuse | 63W | <22 | 7300lm | 5100lm | 62705 | 62710 |
| 3000K | 2287mm | Diffuse | 102W | <22 | 11700lm | 8200lm | 62706 | 62711 |
| 3000K | 2850mm | Diffuse | 114W | <22 | 13150lm | 9200lm | 62707 | 62712 |
| 4000K | 310mm | Diffuse | 13W | <22 | 1550lm | 1050lm | 62713 | |
| 4000K | 595mm | Diffuse | 26W | <22 | 3150lm | 2200lm | 62714 | 62719 |
| 4000K | 1160mm | Diffuse | 51W | <22 | 6300lm | 4400lm | 62715 | 62720 |
| 4000K | 1440mm | Diffuse | 63W | <22 | 7900lm | 5550lm | 62716 | 62721 |
| 4000K | 2287mm | Diffuse | 102W | <22 | 12600lm | 8800lm | 62717 | 62722 |
| 4000K | 2850mm | Diffuse | 114W | <22 | 14250lm | 10000lm | 62718 | 62723 |
| On/Off Code | DALI Code | |
|---|---|---|
| 3000K / 310mm / Diffuse / 13W / <22 / 1000lm | 62702 | |
| 3000K / 595mm / Diffuse / 26W / <22 / 2000lm | 62703 | 62708 |
| 3000K / 1160mm / Diffuse / 51W / <22 / 4100lm | 62704 | 62709 |
| 3000K / 1440mm / Diffuse / 63W / <22 / 5100lm | 62705 | 62710 |
| 3000K / 2287mm / Diffuse / 102W / <22 / 8200lm | 62706 | 62711 |
| 3000K / 2850mm / Diffuse / 114W / <22 / 9200lm | 62707 | 62712 |
| 4000K / 310mm / Diffuse / 13W / <22 / 1050lm | 62713 | |
| 4000K / 595mm / Diffuse / 26W / <22 / 2200lm | 62714 | 62719 |
| 4000K / 1160mm / Diffuse / 51W / <22 / 4400lm | 62715 | 62720 |
| 4000K / 1440mm / Diffuse / 63W / <22 / 5550lm | 62716 | 62721 |
| 4000K / 2287mm / Diffuse / 102W / <22 / 8800lm | 62717 | 62722 |
| 4000K / 2850mm / Diffuse / 114W / <22 / 10000lm | 62718 | 62723 |
