Sys45

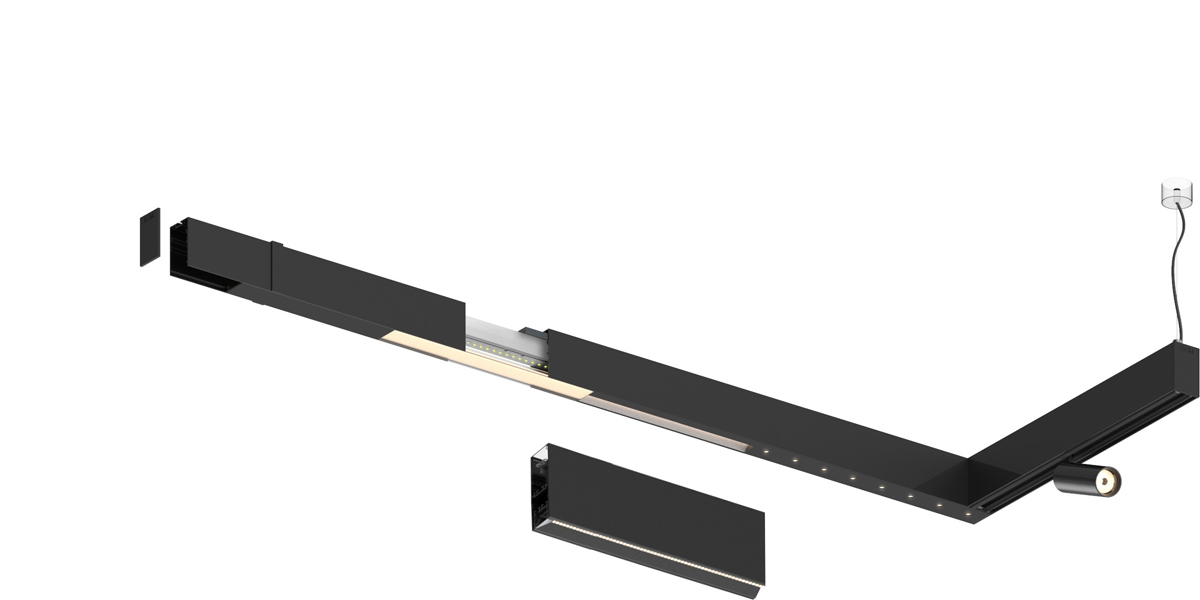

inFinit module
/ About Sys45 inFinit module
Design: O/M + Bartenbach GmbH
The glare control and visual comfort of the optic make inFinit ideal for workplaces, forming a continuous line of light that is integrated subtly in architecture.
Light Effect
Flood
Wide flood
Finishes
.01 White
.02 Black/ Filter Options
/ inFinit module End module
No results were found
Color Temperature
Luminaire Dimension
Module dimension
Light Source Power
UGR
Light Source Flux
Luminaire Flux
DALI Code
| Color Temperature | Luminaire Dimension | Module dimension | Light Source Power | UGR | Light Source Flux | Luminaire Flux | DALI Code |
|---|---|---|---|---|---|---|---|
| 3000K | 1171mm | Wide flood 80° | 14W | <19 | 1680lm | 1360lm | 61157 |
| 3000K | 1171mm | Wide flood 80° | 22W | <19 | 2760lm | 2200lm | 61158 |
| 3000K | 1171mm | Flood 65° | 14W | <13 | 1680lm | 1360lm | 61155 |
| 3000K | 1171mm | Flood 65° | 19W | <16 | 2400lm | 1920lm | 61156 |
| 3000K | 1459mm | Wide flood 80° | 17W | <19 | 2100lm | 1700lm | 61161 |
| 3000K | 1459mm | Wide flood 80° | 27W | <19 | 3450lm | 2750lm | 61162 |
| 3000K | 1459mm | Flood 65° | 17W | <13 | 2100lm | 1700lm | 61159 |
| 3000K | 1459mm | Flood 65° | 23W | <16 | 3000lm | 2400lm | 61160 |
| 3000K | 1747mm | Wide flood 80° | 20W | <19 | 2520lm | 2040lm | 61165 |
| 3000K | 1747mm | Wide flood 80° | 32W | <19 | 4140lm | 3300lm | 61166 |
| 3000K | 1747mm | Flood 65° | 20W | <13 | 2520lm | 2040lm | 61163 |
| 3000K | 1747mm | Flood 65° | 28W | <16 | 3600lm | 2880lm | 61164 |
| 3000K | 2323mm | Wide flood 80° | 27W | <19 | 3360lm | 2720lm | 63150 |
| 3000K | 2323mm | Wide flood 80° | 43W | <19 | 5520lm | 4400lm | 63151 |
| 3000K | 2323mm | Flood 65° | 27W | <13 | 3360lm | 2720lm | 63148 |
| 3000K | 2323mm | Flood 65° | 37W | <16 | 4800lm | 3840lm | 63149 |
| 3000K | 2899mm | Wide flood 80° | 33W | <19 | 4200lm | 3400lm | 63154 |
| 3000K | 2899mm | Wide flood 80° | 53W | <19 | 6900lm | 5500lm | 63155 |
| 3000K | 2899mm | Flood 65° | 33W | <13 | 4200lm | 3400lm | 63152 |
| 3000K | 2899mm | Flood 65° | 46W | <16 | 6000lm | 4800lm | 63153 |
| 4000K | 1171mm | Wide flood 80° | 14W | <19 | 1800lm | 1440lm | 61177 |
| 4000K | 1171mm | Wide flood 80° | 22W | <19 | 3000lm | 2400lm | 61178 |
| 4000K | 1171mm | Flood 65° | 14W | <13 | 1800lm | 1440lm | 61175 |
| 4000K | 1171mm | Flood 65° | 19W | <16 | 2600lm | 2080lm | 61176 |
| 4000K | 1459mm | Wide flood 80° | 17W | <19 | 2250lm | 1800lm | 61181 |
| 4000K | 1459mm | Wide flood 80° | 27W | <19 | 3750lm | 3000lm | 61182 |
| 4000K | 1459mm | Flood 65° | 17W | <13 | 2250lm | 1800lm | 61179 |
| 4000K | 1459mm | Flood 65° | 23W | <16 | 3250lm | 2600lm | 61180 |
| 4000K | 1747mm | Wide flood 80° | 20W | <19 | 2700lm | 2160lm | 61185 |
| 4000K | 1747mm | Wide flood 80° | 32W | <19 | 4500lm | 3600lm | 61186 |
| 4000K | 1747mm | Flood 65° | 20W | <13 | 2700lm | 2160lm | 61183 |
| 4000K | 1747mm | Flood 65° | 28W | <16 | 3900lm | 3120lm | 61184 |
| 4000K | 2323mm | Wide flood 80° | 27W | <19 | 3600lm | 2880lm | 63158 |
| 4000K | 2323mm | Wide flood 80° | 43W | <19 | 6000lm | 4800lm | 63159 |
| 4000K | 2323mm | Flood 65° | 27W | <13 | 3600lm | 2880lm | 63156 |
| 4000K | 2323mm | Flood 65° | 37W | <16 | 5200lm | 4160lm | 63157 |
| 4000K | 2899mm | Wide flood 80° | 33W | <19 | 4500lm | 3600lm | 63162 |
| 4000K | 2899mm | Wide flood 80° | 53W | <19 | 7500lm | 6000lm | 63163 |
| 4000K | 2899mm | Flood 65° | 33W | <13 | 4500lm | 3600lm | 63160 |
| 4000K | 2899mm | Flood 65° | 46W | <16 | 6500lm | 5200lm | 63161 |
| 2200K-5000K | 1171mm | Wide flood 80° | 23W* | <19 | 2920lm* | 2320lm* | 61190 |
| 2200K-5000K | 1171mm | Flood 65° | 23W* | <13 | 2920lm* | 2320lm* | 61189 |
| 2200K-5000K | 1459mm | Wide flood 80° | 28W* | <19 | 3650lm* | 2900lm* | 61192 |
| 2200K-5000K | 1459mm | Flood 65° | 28W* | <13 | 3650lm* | 2900lm* | 61191 |
| 2200K-5000K | 1747mm | Wide flood 80° | 34W* | <19 | 4380lm* | 3480lm* | 61194 |
| 2200K-5000K | 1747mm | Flood 65° | 34W* | <13 | 4380lm* | 3480lm* | 61193 |
* 3000K values
| DALI Code | |
|---|---|
| 3000K / 1171mm / Wide flood 80° / 14W / <19 / 1680lm | 61157 |
| 3000K / 1171mm / Wide flood 80° / 22W / <19 / 2760lm | 61158 |
| 3000K / 1171mm / Flood 65° / 14W / <13 / 1680lm | 61155 |
| 3000K / 1171mm / Flood 65° / 19W / <16 / 2400lm | 61156 |
| 3000K / 1459mm / Wide flood 80° / 17W / <19 / 2100lm | 61161 |
| 3000K / 1459mm / Wide flood 80° / 27W / <19 / 3450lm | 61162 |
| 3000K / 1459mm / Flood 65° / 17W / <13 / 2100lm | 61159 |
| 3000K / 1459mm / Flood 65° / 23W / <16 / 3000lm | 61160 |
| 3000K / 1747mm / Wide flood 80° / 20W / <19 / 2520lm | 61165 |
| 3000K / 1747mm / Wide flood 80° / 32W / <19 / 4140lm | 61166 |
| 3000K / 1747mm / Flood 65° / 20W / <13 / 2520lm | 61163 |
| 3000K / 1747mm / Flood 65° / 28W / <16 / 3600lm | 61164 |
| 3000K / 2323mm / Wide flood 80° / 27W / <19 / 3360lm | 63150 |
| 3000K / 2323mm / Wide flood 80° / 43W / <19 / 5520lm | 63151 |
| 3000K / 2323mm / Flood 65° / 27W / <13 / 3360lm | 63148 |
| 3000K / 2323mm / Flood 65° / 37W / <16 / 4800lm | 63149 |
| 3000K / 2899mm / Wide flood 80° / 33W / <19 / 4200lm | 63154 |
| 3000K / 2899mm / Wide flood 80° / 53W / <19 / 6900lm | 63155 |
| 3000K / 2899mm / Flood 65° / 33W / <13 / 4200lm | 63152 |
| 3000K / 2899mm / Flood 65° / 46W / <16 / 6000lm | 63153 |
| 4000K / 1171mm / Wide flood 80° / 14W / <19 / 1800lm | 61177 |
| 4000K / 1171mm / Wide flood 80° / 22W / <19 / 3000lm | 61178 |
| 4000K / 1171mm / Flood 65° / 14W / <13 / 1800lm | 61175 |
| 4000K / 1171mm / Flood 65° / 19W / <16 / 2600lm | 61176 |
| 4000K / 1459mm / Wide flood 80° / 17W / <19 / 2250lm | 61181 |
| 4000K / 1459mm / Wide flood 80° / 27W / <19 / 3750lm | 61182 |
| 4000K / 1459mm / Flood 65° / 17W / <13 / 2250lm | 61179 |
| 4000K / 1459mm / Flood 65° / 23W / <16 / 3250lm | 61180 |
| 4000K / 1747mm / Wide flood 80° / 20W / <19 / 2700lm | 61185 |
| 4000K / 1747mm / Wide flood 80° / 32W / <19 / 4500lm | 61186 |
| 4000K / 1747mm / Flood 65° / 20W / <13 / 2700lm | 61183 |
| 4000K / 1747mm / Flood 65° / 28W / <16 / 3900lm | 61184 |
| 4000K / 2323mm / Wide flood 80° / 27W / <19 / 3600lm | 63158 |
| 4000K / 2323mm / Wide flood 80° / 43W / <19 / 6000lm | 63159 |
| 4000K / 2323mm / Flood 65° / 27W / <13 / 3600lm | 63156 |
| 4000K / 2323mm / Flood 65° / 37W / <16 / 5200lm | 63157 |
| 4000K / 2899mm / Wide flood 80° / 33W / <19 / 4500lm | 63162 |
| 4000K / 2899mm / Wide flood 80° / 53W / <19 / 7500lm | 63163 |
| 4000K / 2899mm / Flood 65° / 33W / <13 / 4500lm | 63160 |
| 4000K / 2899mm / Flood 65° / 46W / <16 / 6500lm | 63161 |
| 2200K-5000K / 1171mm / Wide flood 80° / 23W* / <19 / 2920lm* | 61190 |
| 2200K-5000K / 1171mm / Flood 65° / 23W* / <13 / 2920lm* | 61189 |
| 2200K-5000K / 1459mm / Wide flood 80° / 28W* / <19 / 3650lm* | 61192 |
| 2200K-5000K / 1459mm / Flood 65° / 28W* / <13 / 3650lm* | 61191 |
| 2200K-5000K / 1747mm / Wide flood 80° / 34W* / <19 / 4380lm* | 61194 |
| 2200K-5000K / 1747mm / Flood 65° / 34W* / <13 / 4380lm* | 61193 |
* 3000K values
/ inFinit module Middle module
No results were found
Color Temperature
Luminaire Dimension
Module dimension
Light Source Power
UGR
Light Source Flux
Luminaire Flux
DALI Code
| Color Temperature | Luminaire Dimension | Module dimension | Light Source Power | UGR | Light Source Flux | Luminaire Flux | DALI Code |
|---|---|---|---|---|---|---|---|
| 3000K | 1152mm | Wide flood 80° | 14W | <19 | 1680lm | 1360lm | 61205 |
| 3000K | 1152mm | Wide flood 80° | 22W | <19 | 2760lm | 2200lm | 61206 |
| 3000K | 1152mm | Flood 65° | 14W | <13 | 1680lm | 1360lm | 61203 |
| 3000K | 1152mm | Flood 65° | 19W | <16 | 2400lm | 1920lm | 61204 |
| 3000K | 1440mm | Wide flood 80° | 17W | <19 | 2100lm | 1700lm | 61209 |
| 3000K | 1440mm | Wide flood 80° | 27W | <19 | 3450lm | 2750lm | 61210 |
| 3000K | 1440mm | Flood 65° | 17W | <13 | 2100lm | 1700lm | 61207 |
| 3000K | 1440mm | Flood 65° | 23W | <16 | 3000lm | 2400lm | 61208 |
| 3000K | 1728mm | Wide flood 80° | 20W | <19 | 2520lm | 2040lm | 61213 |
| 3000K | 1728mm | Wide flood 80° | 32W | <19 | 4140lm | 3300lm | 61214 |
| 3000K | 1728mm | Flood 65° | 20W | <13 | 2520lm | 2040lm | 61211 |
| 3000K | 1728mm | Flood 65° | 28W | <16 | 3600lm | 2880lm | 61212 |
| 3000K | 2304mm | Wide flood 80° | 27W | <19 | 3360lm | 2720lm | 63166 |
| 3000K | 2304mm | Wide flood 80° | 43W | <19 | 5520lm | 4400lm | 63167 |
| 3000K | 2304mm | Flood 65° | 27W | <13 | 3360lm | 2720lm | 63164 |
| 3000K | 2304mm | Flood 65° | 37W | <16 | 4800lm | 3840lm | 63165 |
| 3000K | 2880mm | Wide flood 80° | 33W | <19 | 4200lm | 3400lm | 63170 |
| 3000K | 2880mm | Wide flood 80° | 53W | <19 | 6900lm | 5500lm | 63171 |
| 3000K | 2880mm | Flood 65° | 33W | <13 | 4200lm | 3400lm | 63168 |
| 3000K | 2880mm | Flood 65° | 46W | <16 | 6000lm | 4800lm | 63169 |
| 4000K | 1152mm | Wide flood 80° | 14W | <19 | 1800lm | 1440lm | 61225 |
| 4000K | 1152mm | Wide flood 80° | 22W | <19 | 3000lm | 2400lm | 61226 |
| 4000K | 1152mm | Flood 65° | 14W | <13 | 1800lm | 1440lm | 61223 |
| 4000K | 1152mm | Flood 65° | 19W | <16 | 2600lm | 2080lm | 61224 |
| 4000K | 1440mm | Wide flood 80° | 17W | <19 | 2250lm | 1800lm | 61229 |
| 4000K | 1440mm | Wide flood 80° | 27W | <19 | 3750lm | 3000lm | 61230 |
| 4000K | 1440mm | Flood 65° | 17W | <13 | 2250lm | 1800lm | 61227 |
| 4000K | 1440mm | Flood 65° | 23W | <16 | 3250lm | 2600lm | 61228 |
| 4000K | 1728mm | Wide flood 80° | 20W | <19 | 2700lm | 2160lm | 61233 |
| 4000K | 1728mm | Wide flood 80° | 32W | <19 | 4500lm | 3600lm | 61234 |
| 4000K | 1728mm | Flood 65° | 20W | <13 | 2700lm | 2160lm | 61231 |
| 4000K | 1728mm | Flood 65° | 28W | <16 | 3900lm | 3120lm | 61232 |
| 4000K | 2304mm | Wide flood 80° | 27W | <19 | 3600lm | 2880lm | 63174 |
| 4000K | 2304mm | Wide flood 80° | 43W | <19 | 6000lm | 4800lm | 63175 |
| 4000K | 2304mm | Flood 65° | 27W | <13 | 3600lm | 2880lm | 63172 |
| 4000K | 2304mm | Flood 65° | 37W | <16 | 5200lm | 4160lm | 63173 |
| 4000K | 2880mm | Wide flood 80° | 33W | <19 | 4500lm | 3600lm | 63178 |
| 4000K | 2880mm | Wide flood 80° | 53W | <19 | 7500lm | 6000lm | 63179 |
| 4000K | 2880mm | Flood 65° | 33W | <13 | 4500lm | 3600lm | 63176 |
| 4000K | 2880mm | Flood 65° | 46W | <16 | 6500lm | 5200lm | 63177 |
| 2200-5000K | 1152mm | Wide flood 80° | 23W* | <19 | 2920lm* | 2320lm* | 61238 |
| 2200-5000K | 1152mm | Flood 65° | 23W* | <13 | 2920lm* | 2320lm* | 61237 |
| 2200-5000K | 1440mm | Wide flood 80° | 28W* | <19 | 3650lm* | 2900lm* | 61240 |
| 2200-5000K | 1440mm | Flood 65° | 28W* | <13 | 3650lm* | 2900lm* | 61239 |
| 2200-5000K | 1728mm | Wide flood 80° | 34W* | <19 | 4380lm* | 3480lm* | 61242 |
| 2200-5000K | 1728mm | Flood 65° | 34W* | <13 | 4380lm* | 3480lm* | 61241 |
* 3000K values
| DALI Code | |
|---|---|
| 3000K / 1152mm / Wide flood 80° / 14W / <19 / 1680lm | 61205 |
| 3000K / 1152mm / Wide flood 80° / 22W / <19 / 2760lm | 61206 |
| 3000K / 1152mm / Flood 65° / 14W / <13 / 1680lm | 61203 |
| 3000K / 1152mm / Flood 65° / 19W / <16 / 2400lm | 61204 |
| 3000K / 1440mm / Wide flood 80° / 17W / <19 / 2100lm | 61209 |
| 3000K / 1440mm / Wide flood 80° / 27W / <19 / 3450lm | 61210 |
| 3000K / 1440mm / Flood 65° / 17W / <13 / 2100lm | 61207 |
| 3000K / 1440mm / Flood 65° / 23W / <16 / 3000lm | 61208 |
| 3000K / 1728mm / Wide flood 80° / 20W / <19 / 2520lm | 61213 |
| 3000K / 1728mm / Wide flood 80° / 32W / <19 / 4140lm | 61214 |
| 3000K / 1728mm / Flood 65° / 20W / <13 / 2520lm | 61211 |
| 3000K / 1728mm / Flood 65° / 28W / <16 / 3600lm | 61212 |
| 3000K / 2304mm / Wide flood 80° / 27W / <19 / 3360lm | 63166 |
| 3000K / 2304mm / Wide flood 80° / 43W / <19 / 5520lm | 63167 |
| 3000K / 2304mm / Flood 65° / 27W / <13 / 3360lm | 63164 |
| 3000K / 2304mm / Flood 65° / 37W / <16 / 4800lm | 63165 |
| 3000K / 2880mm / Wide flood 80° / 33W / <19 / 4200lm | 63170 |
| 3000K / 2880mm / Wide flood 80° / 53W / <19 / 6900lm | 63171 |
| 3000K / 2880mm / Flood 65° / 33W / <13 / 4200lm | 63168 |
| 3000K / 2880mm / Flood 65° / 46W / <16 / 6000lm | 63169 |
| 4000K / 1152mm / Wide flood 80° / 14W / <19 / 1800lm | 61225 |
| 4000K / 1152mm / Wide flood 80° / 22W / <19 / 3000lm | 61226 |
| 4000K / 1152mm / Flood 65° / 14W / <13 / 1800lm | 61223 |
| 4000K / 1152mm / Flood 65° / 19W / <16 / 2600lm | 61224 |
| 4000K / 1440mm / Wide flood 80° / 17W / <19 / 2250lm | 61229 |
| 4000K / 1440mm / Wide flood 80° / 27W / <19 / 3750lm | 61230 |
| 4000K / 1440mm / Flood 65° / 17W / <13 / 2250lm | 61227 |
| 4000K / 1440mm / Flood 65° / 23W / <16 / 3250lm | 61228 |
| 4000K / 1728mm / Wide flood 80° / 20W / <19 / 2700lm | 61233 |
| 4000K / 1728mm / Wide flood 80° / 32W / <19 / 4500lm | 61234 |
| 4000K / 1728mm / Flood 65° / 20W / <13 / 2700lm | 61231 |
| 4000K / 1728mm / Flood 65° / 28W / <16 / 3900lm | 61232 |
| 4000K / 2304mm / Wide flood 80° / 27W / <19 / 3600lm | 63174 |
| 4000K / 2304mm / Wide flood 80° / 43W / <19 / 6000lm | 63175 |
| 4000K / 2304mm / Flood 65° / 27W / <13 / 3600lm | 63172 |
| 4000K / 2304mm / Flood 65° / 37W / <16 / 5200lm | 63173 |
| 4000K / 2880mm / Wide flood 80° / 33W / <19 / 4500lm | 63178 |
| 4000K / 2880mm / Wide flood 80° / 53W / <19 / 7500lm | 63179 |
| 4000K / 2880mm / Flood 65° / 33W / <13 / 4500lm | 63176 |
| 4000K / 2880mm / Flood 65° / 46W / <16 / 6500lm | 63177 |
| 2200-5000K / 1152mm / Wide flood 80° / 23W* / <19 / 2920lm* | 61238 |
| 2200-5000K / 1152mm / Flood 65° / 23W* / <13 / 2920lm* | 61237 |
| 2200-5000K / 1440mm / Wide flood 80° / 28W* / <19 / 3650lm* | 61240 |
| 2200-5000K / 1440mm / Flood 65° / 28W* / <13 / 3650lm* | 61239 |
| 2200-5000K / 1728mm / Wide flood 80° / 34W* / <19 / 4380lm* | 61242 |
| 2200-5000K / 1728mm / Flood 65° / 34W* / <13 / 4380lm* | 61241 |
* 3000K values
