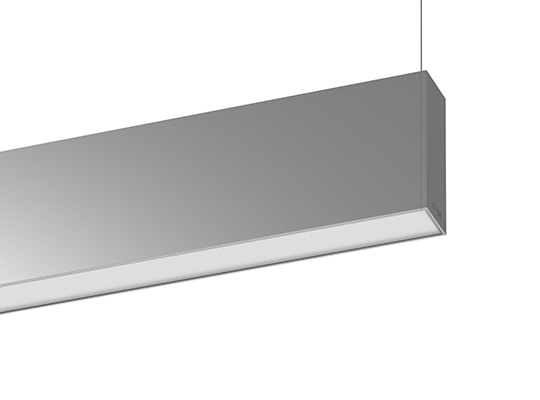

H45

With light projecting both directly and indirectly, H45 is the go-to for versatile diffusion and a profile that combines sleek, sophisticated lines with a timeless design. Available individually and made-to-measure, with different installation and output options.

H45

With light projecting both directly and indirectly, H45 is the go-to for versatile diffusion and a profile that combines sleek, sophisticated lines with a timeless design. Available individually and made-to-measure, with different installation and output options.

/ Select an option for more details



The combination of direct and indirect light guarantees balanced contrast ratio between the task area and the surroundings increasing lighting quality.

Separate circuits
Choose between activate direct and indirect lighting individually to guarantee the right amount of light.

Adjustable

Suspension system with millimetric height adjustment.



Made-to-measure

Choose the length and layout of the profile as you want it, to model the right lighting functions for different tasks.

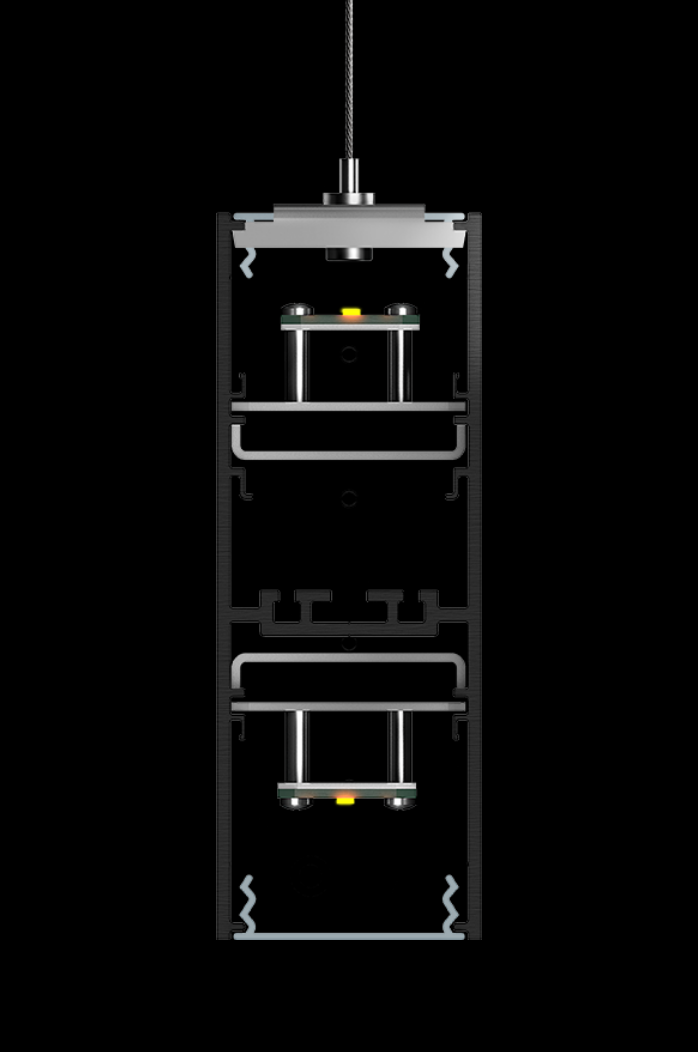

Body
Aluminium profile and end caps with 25 micron maximum corrosion resistance anodisation in matt finish or electrostatic 100% polyester paint with textured finish.

Diffuser
Polycarbonate diffusers (clear diffuser for indirect light and frosted diffuser for direct light) with user-friendly clipping system.

Circuits
Separate circuits: activate direct and indirect light individually.

Accessories
Suspension fitting accessories include power supply base and 2m of 1,5mm steel suspension cables with millimetric height adjustment system.

Light Source
High-efficiency LED modules with good colour consistency (3 step-MacAdam) and long operating lifespan (>50.000h; L80/B10). LED CRI >80 2700K, 3000K, 4000K.

Power Supply
Drivers On/Off or DALI included.

Finishes

H45 is available in White (.01), Black (.02) and Grey (.03).

.01 White
.02 Black
.10 Anodised aluminium
Finishes
.01 White
Finishes
.02 Black
Finishes
.10 Anodised aluminium
