The latest innovation from O/M’s partnership with Bartenbach GmbH, inFinit’s seamless, recessed Lightstream optical system, offers unsurpassed glare control and visual comfort. Its limitless extensibility, along with optional indirect light, and ergonomic performance, make it ideal for workplaces.
/ Select an option for more details
Lightstream is an optic micro-lens system that creates smooth and homogenous light while emulating a continuous line of light. Developed with Bartenbach GmbH, the unique structure of Lightstream optics creates an exeptional visual comfort, and prevents low-angle-straylight, reducing glare even across short distances.
Eliminating straylight
To reduce reflection from the exit surfaces of each lens, small structures were inserted between them, stopping the straylight light. This significantly reduces glare and it provides greater visual comfort.
Cut-off

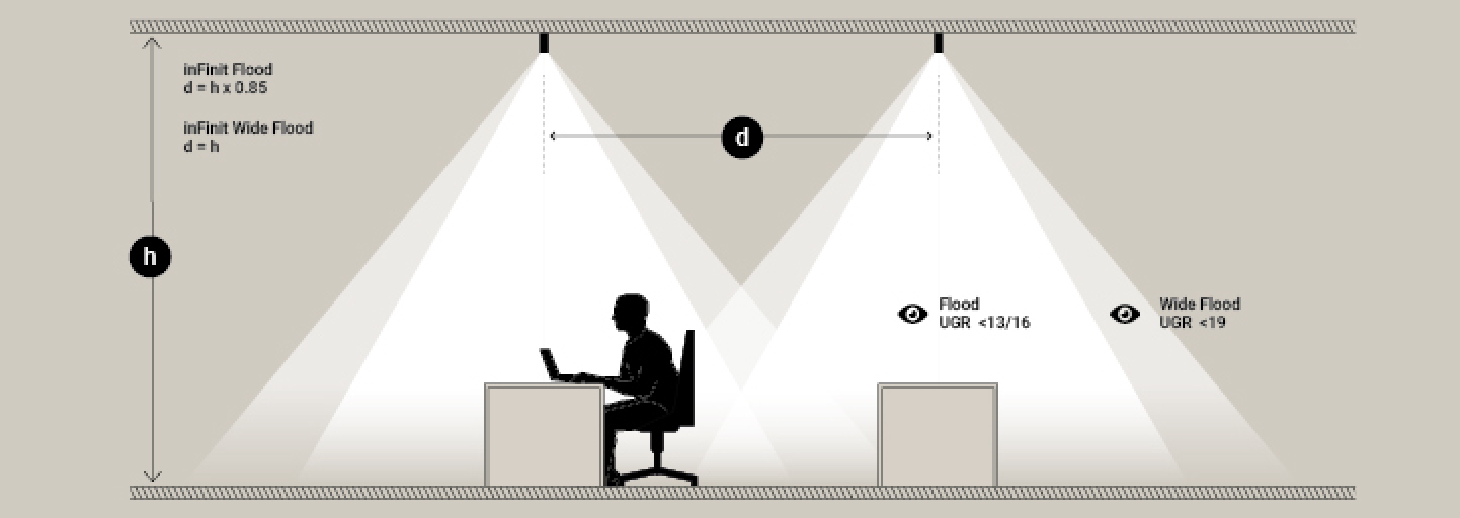

inFinit’s direct lighting offers a cut-off angle superior to 38º, adequate for working places and other task areas.
Infinit flood: UGR <13
Infinite wide flood: UGR <19
Perfect balance
The combination of direct and indirect light, produces balanced contrast ratio between the task area and the space around it, avoiding eye fatigue and “cave effect”.
Body
Aluminium profile and end caps in electrostatic 100% polyester paint, with textured or smooth matte finish.
Optics
Direct light: Elliptical optic micro-lenses (Lightstream) combined with a secondary reflector, integrated into an extruded aluminium profile. Developed in partnership with Bartenbach GmbH.
Indirect light: High-end lenses for batwing effect protected by a transparent polycarbonate diffuser.
Accessories
Fitting accessories for different applications are available.
Light Source
O/M LED modules with excellent colour consistency (2 stepMacAdam) and long operating lifespan (>50.000h; L80/B10). LED CRI>90 3000K, 4000K; Tunable White.
Power Supply
Drivers DALI included. Tunable White option with DT8 DALI driver.
inFinit is available in White (.01) and Black (.02) for Recessed and Surface/Pendant versions.
For Pendant direct/indirect in Matt White (.04) and Matt Black (.05).
.01 White
.02 Black
.04 Matt White
.05 Matt Black
