/ Sys45 Indirect module
Design: O/M

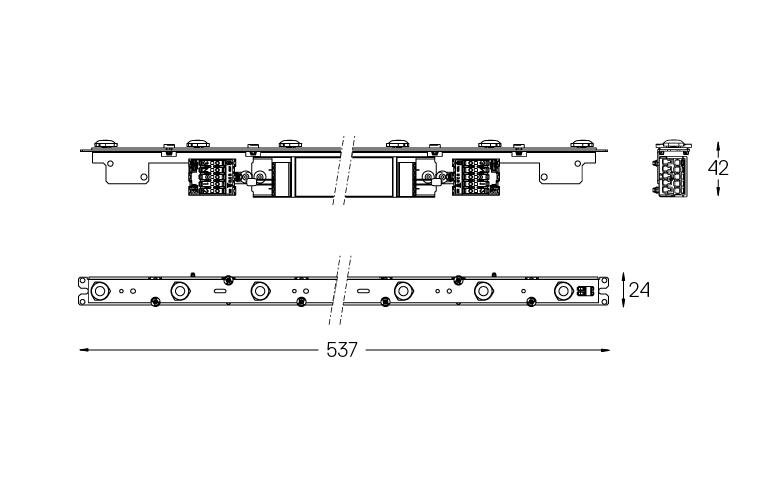

Indirect module to Sys45 system with Linear lenses for batwing effect. Protected by a clear polycarbonate diffuser. ordered separately.
Color temperature 3000K CRI >80
Beam Angle Diffuse LOR 63%
UGR Colour deviation
Light source power 9,9W Life time
Light source flux 1100lm Control
Light source efficiency 111lm/W IP rating 20
Luminaire power 12W IK rating
Luminaire flux 690lm Weight
Luminaire efficiency 58lm/W Wiring
Color temperature 3000K
Beam Angle Diffuse
UGR
Light source power 9,9W
Light source flux 1100lm
Light source efficiency 111lm/W
Luminaire power 12W
Luminaire flux 690lm
Luminaire efficiency 58lm/W
CRI >80
LOR 63%
Colour deviation
Life time
Control
IP rating 20
IK rating
Weight
Wiring
Last Update: 1 January, 1970

/ Downloads

Technical Data
Data sheetInstallation instructionsTender textPhotometric data: LDTPhotometric data: IESCertificationsPhoto selection
Download All

/ Warnings

Choose the length and layout of the system exactly as you want it, to model the right lighting functions for different tasks. For further information please contact: support@om-light.com
